Bearings for High Speed Automotive Parts 7218 7219 7220ctynsulp4 Angular Contact Ball Bearings Mechanical Bearings for Automotive Gearboxes Bearing

Parameter:

In order to meet the performance requirements of bearings, Chinese bearing steel has more excellent performance:
1. Higher contact fatigue strength
2. after heat treatment with higher hardness to meet the bearing performance requirements
3. higher wear resistance, lower friction coefficient
4. Higher elastic limit
5. better impact toughness and fracture toughness
6. better dimensional stability
7. better rust resistance

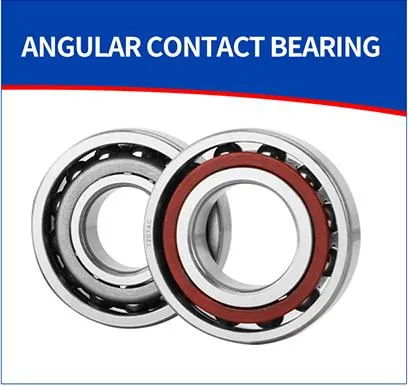

ANGULAR CONTACT BALL BEARING SERIES

where C is 15 degrees contact Angle, AC is 25 degrees contact Angle, B is 40 degrees contact Angle, the bearing limit speed is higher, can bear both radial load and axial load, can also bear pure axial load, the axial load capacity is determined by the contact Angle, and increases with the increase of the contact Angle. It can only withstand the axial load in one direction, when bearing the radial load, it will cause additional axial force, and must apply the corresponding reverse load, so the bearing is generally used in pairs.


SINGLE ROW ANGULAR CONTACT BALL BEARING

Single-row angular contact ball bearings can only bear axial load in one direction, and additional axial force will be caused when bearing radial load. And only limit the axial displacement of the shaft or housing in one direction. Angular contact ball bearings have a contact Angle of 40 degrees, so they can withstand large axial loads. Angular contact ball bearings are of a non-separation design, and the shoulders on both sides of the inner and outer rings are not high or low. In order to increase the load capacity of the bearing, the shoulder on one side is machined lower, so that the bearing can fit more steel balls.

DOUBLE ROW ANGULAR CONTACT BALL BEARING

Double row angular contact ball bearings can bear large radial loads, mainly radial and axial combined loads and torque loads, limiting the axial displacement of both sides of the shaft. The inclinability between the inner and outer rings of the double-row angular contact ball bearing is limited in the parts mainly used to limit the two-way axial displacement of the shaft and the housing. The allowable inclination Angle depends on the internal clearance of the bearing, the bearing size, the internal design and the force and moment acting on the bearing, and the allowable inclination Angle should ensure that no excessive additional stress is generated in the bearing. If the inclination Angle between the inner and outer rings of the bearing exists, the life of the bearing will be affected, and the running accuracy of the bearing will be reduced, and the running noise will be increased. Double row angular contact ball bearings generally use nylon cages or brass solid cages. When installing double row angular contact ball bearings, attention should be paid to the fact that although the bearings can withstand two-way axial loads, if there is a ball loading gap on one side, care should be taken not to let the main axial load pass through the groove side with a gap. When the bearing is used, attention should be paid to making the raceway without the ball filling gap bear the main load.


OUR ADVANTAGE:

1.Our products: with high quality, long life, high speed, low noise, low friction quality products

2. We have: sufficient storage space, sufficient inventory, high production efficiency, we provide customers with the most favorable prices

3. Chinese bearing: in China's production line, products are exported to all over the world, product specifications are complete, certificates are complete, professional R & D team

4. After-sales service and technical guidance: The company provides after-sales service and technical guidance according to customer requirements and needs

Shandong Kangshi Precision Bearing Manufacturing Co., Ltd., located in Yandian Town Industrial Park, Linqing City, Shandong Province, mainly produces zero deep groove ball bearings, two types of cylindrical roller bearings, three types of aligning roller bearings, six types of angular contact ball bearings, seven types of tapered roller bearings, eight types of thrust ball bearings, thrust bearings, nine types of thrust aligning roller bearings, outer spherical bearings, auto parts, Motorcycle parts and other rolling bearings. Our factory has strong professional technology, good production equipment and perfect testing means, can fully meet the various types, specifications, high precision and special use requirements of bearing products customized processing, the production process of the product according to the strict national standards of enterprise internal control standards for the implementation of full inspection and multi-project comprehensive inspection of factory products, Can ensure the quality of each set of factory bearing products to meet national standards. Kangshi bearing has always implemented national standards, market prices, and implemented the "three guarantees" principle for customers: To ensure high-quality quality, preferential prices, superior after-sales service! Welcome customers at home and abroad to consult and negotiate business, the company will continue to win the trust of more customers with good product quality and reputation.

OUR FACTORY QUALITY ASSURANCE
LOW NOISE, HIGH SPEED AND NOT EASY TO BURN EXCELLENT AFTER-SALES SERVICE


PACKAGING AND TRANSPORTATION

1.Industrial packing in general condition (Plastic drums/boxes/industrial packaging + cartons + pallets).
Accept design package when OEM.


MAIN USE

Single row angular contact ball bearings: machine spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, welding machine, low noise type cooling tower, mechanical and electrical equipment, painting equipment, machine slot plate, arc welding machine, etc

Double row angular contact ball bearings: oil pump, Roots blower, air compressor, various transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloidal reducer, food packaging machinery, electric welding machine, electric soldering iron, square box, gravity spray gun, wire stripping machine, half shaft, inspection and analysis equipment, fine chemical machinery, etc

Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic drums/boxes/industrial packaging + cartons + pallets). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q:What are the advantages of your company's services compared to other companies?
A: Factory direct supply, price advantage, 24 hours online timely reply, Provide customers with customs clearance
and quality of various documents, 100% after-sales service
Q:OEM POLICY
A:We can printing your brand (logo,artwork)on the bearings or laser engraving your brand on the bearings.
We can custom your packaging according to your design All copyright own by clients and we promised don't
disclose any info.
Q:How to contact us quickly?
A:Please send us an inquiry or message and leave your other contact information, such as phone number,
whatsapp account or wechat account, we will contact you as soon as possible and provide the detailed information
you need.

Please feel free to contact us, if you have any other question
